Technical Parameters

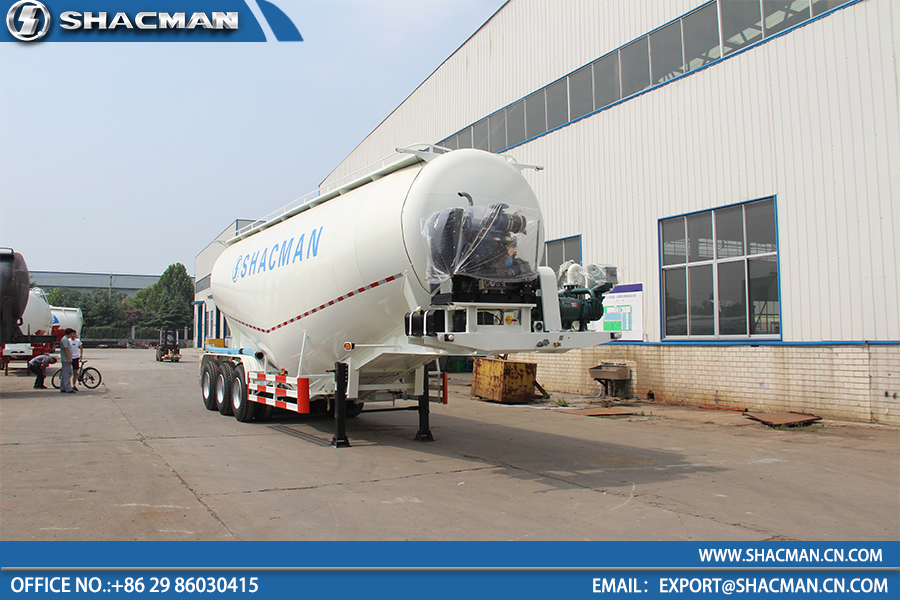

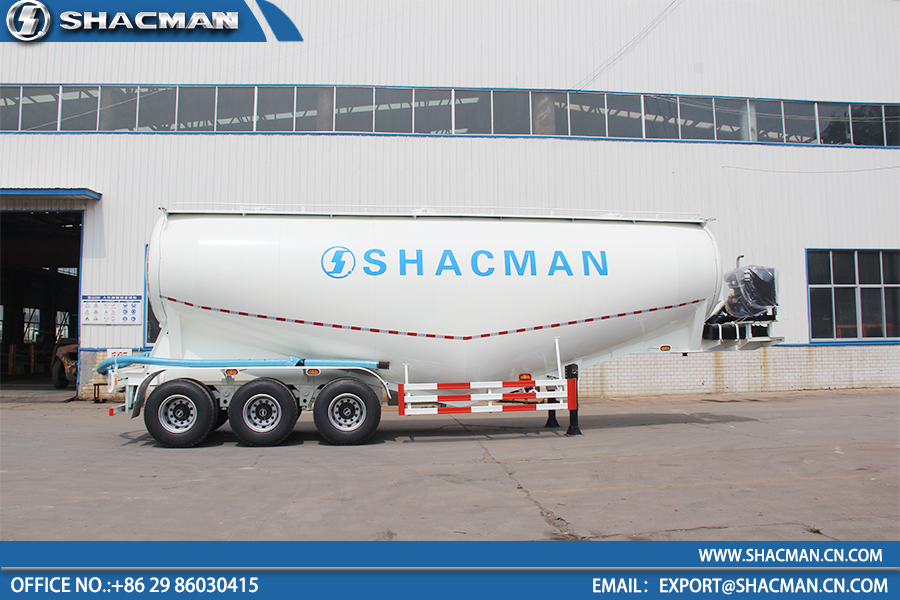

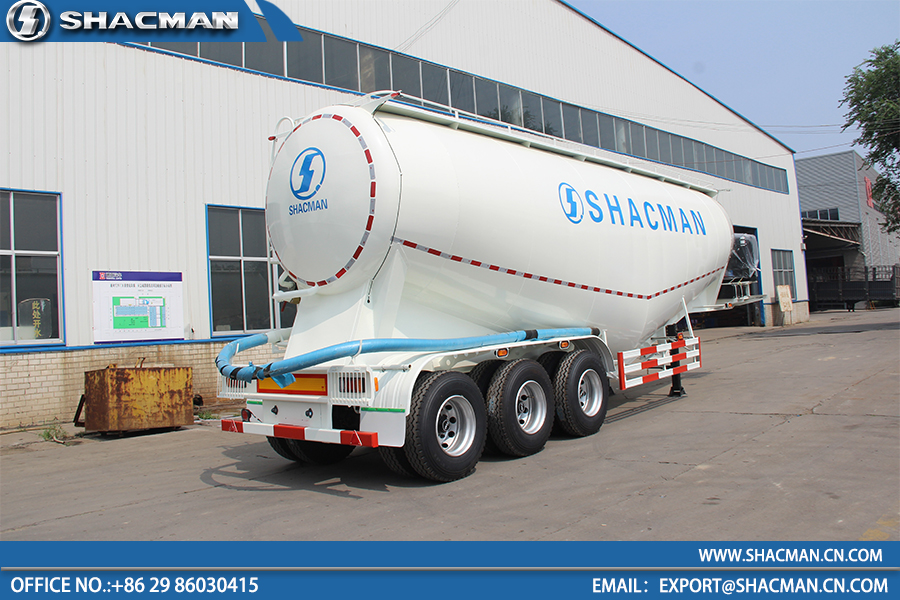

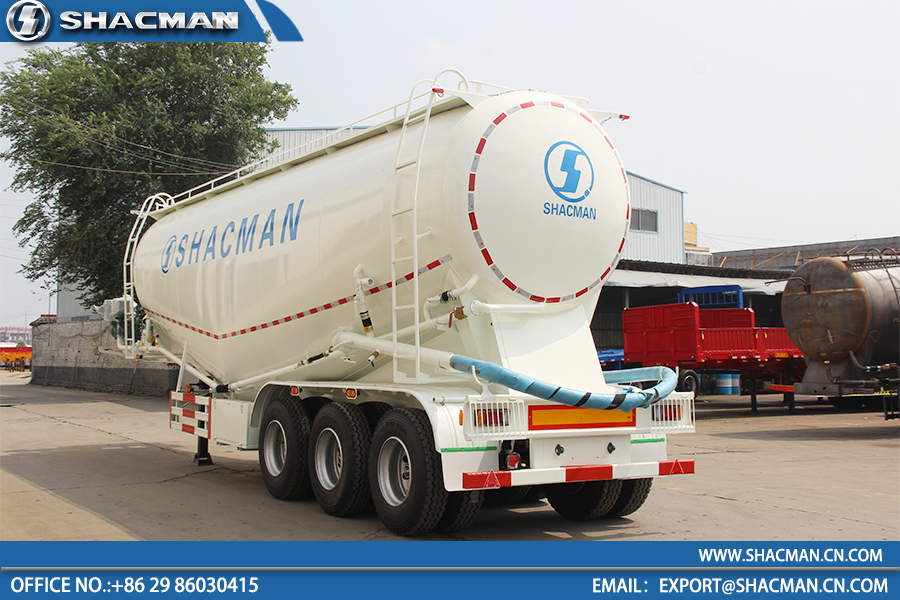

Bulker Body
Dimension(mm) 11650*2550*4000
Total Volume (m³) 45 m³
Tanker Body Material 5mm,520JJ high strength wear resistant steel
End Plate 6mm,520JJ high strength wear resistant steel
Manhole Cover 500mm(diameter),Three Manhole
Bottom Valve Carbon steel API Pneumatic Bottom Valve
Discharging Valve Diameter is 4 inch
Number Of Compartments 1
Discharging Pipe 4”rubber hose, 2 pcs , 6m/each
Engine Weichai Engine, 4102
Air compressor Huafeng engine, Bohai 12 – 15 m3 double-cylinder
Chassis
Main Beams Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material
Axle 2 – 3 axles, 13 Ton -20 ton, BPW or FUWA brand
Landing Gear JOST E100 OR A400
King Pin 3.5 inch or 2 inchbolt-in king pin
Suspension Mechanical suspension/Air suspension
Leaf Spring 90(W)mm×13(Thickness)mm×10 layers
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank
Tire 12.00R22.5/12R22.5/315/80R22.5/12.00R24
Painting Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories One standard tool box
